To enable the intermittent wiper feature on the Vectra stalk (Multiplug L23/24/27 on the dash’ loom) is a simple matter of just connecting the relevant stalk wires to an additional relay, and moving and putting in a couple of other wires…
...Not quite! It took an absolute age to get my head around what was going on.

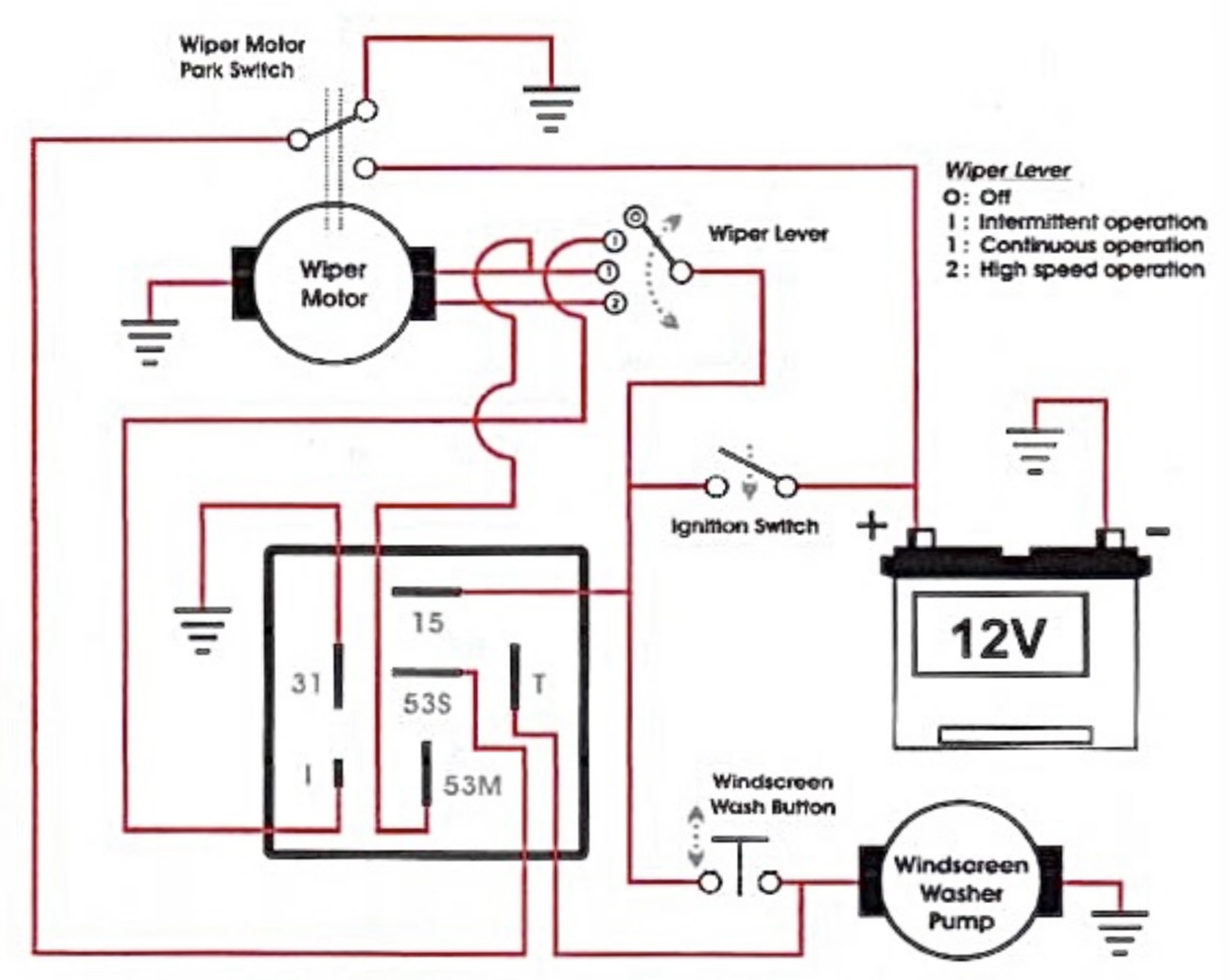

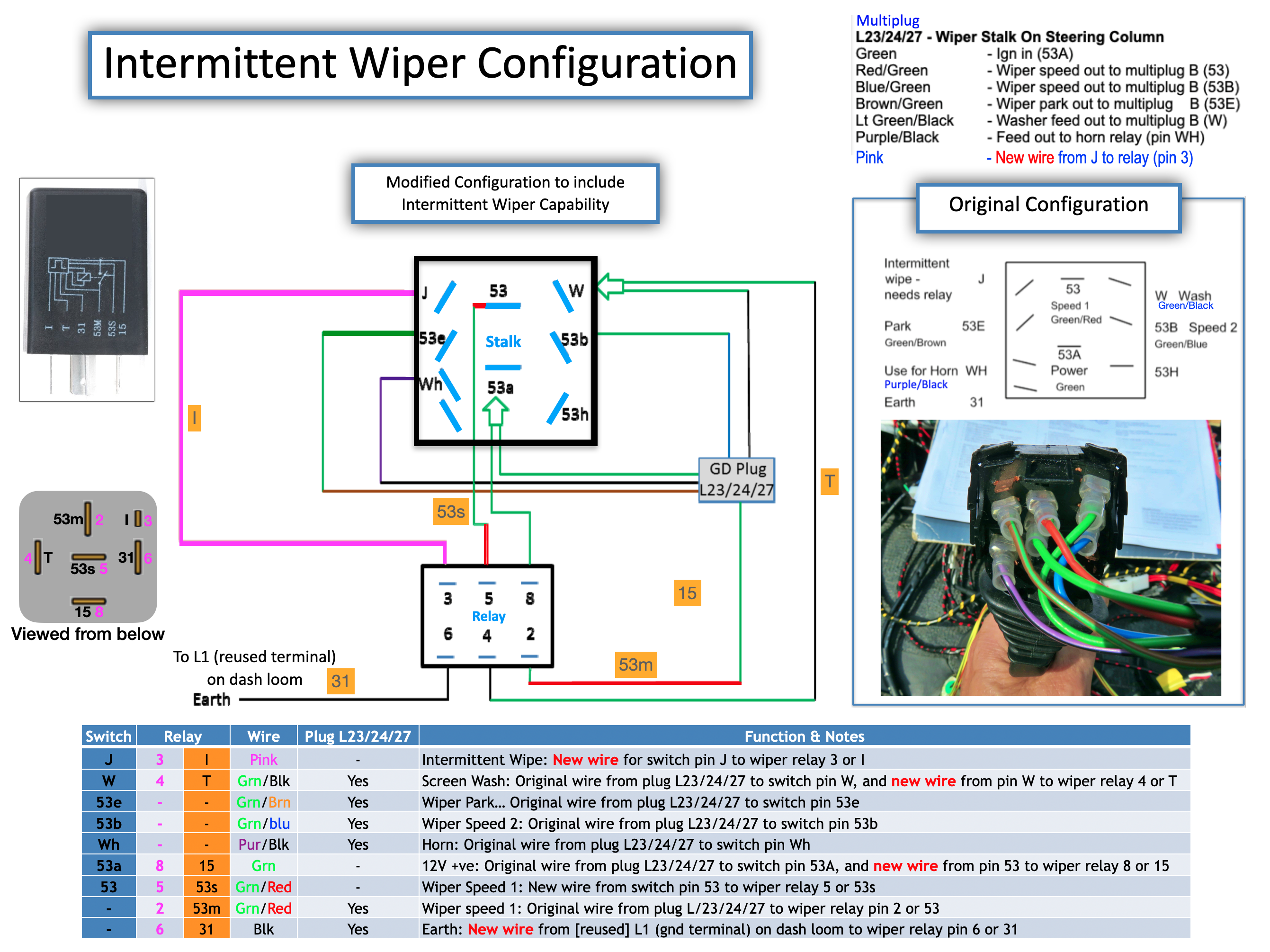

Here’s the connectivity of what I’m doing…

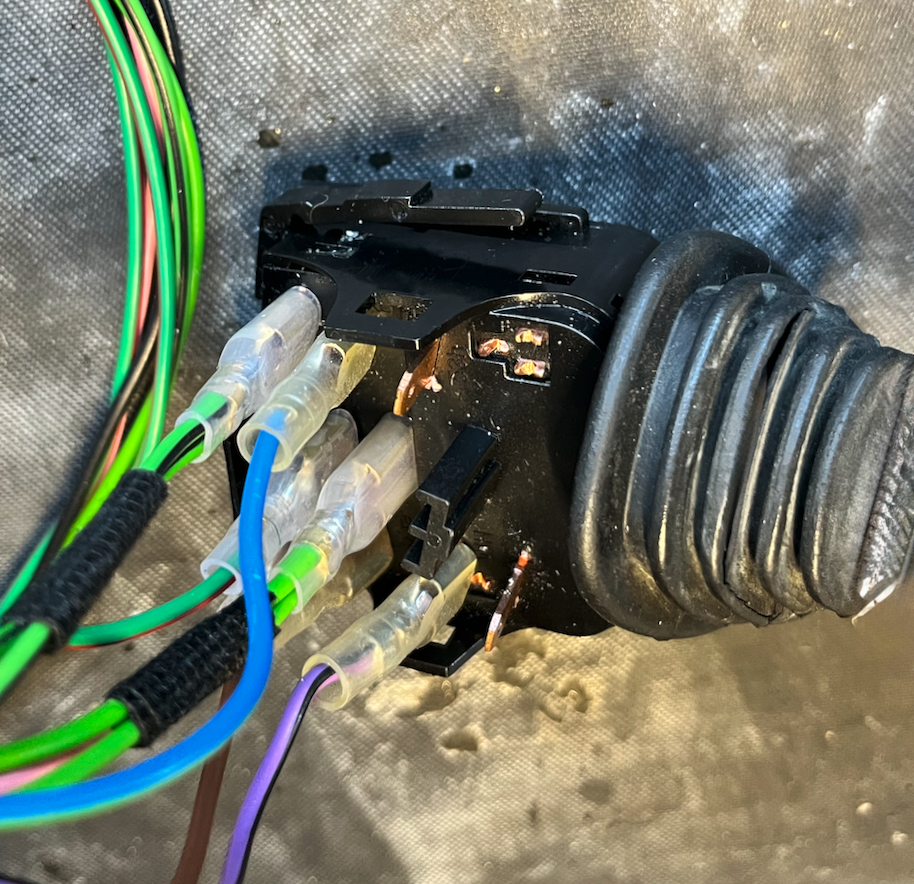

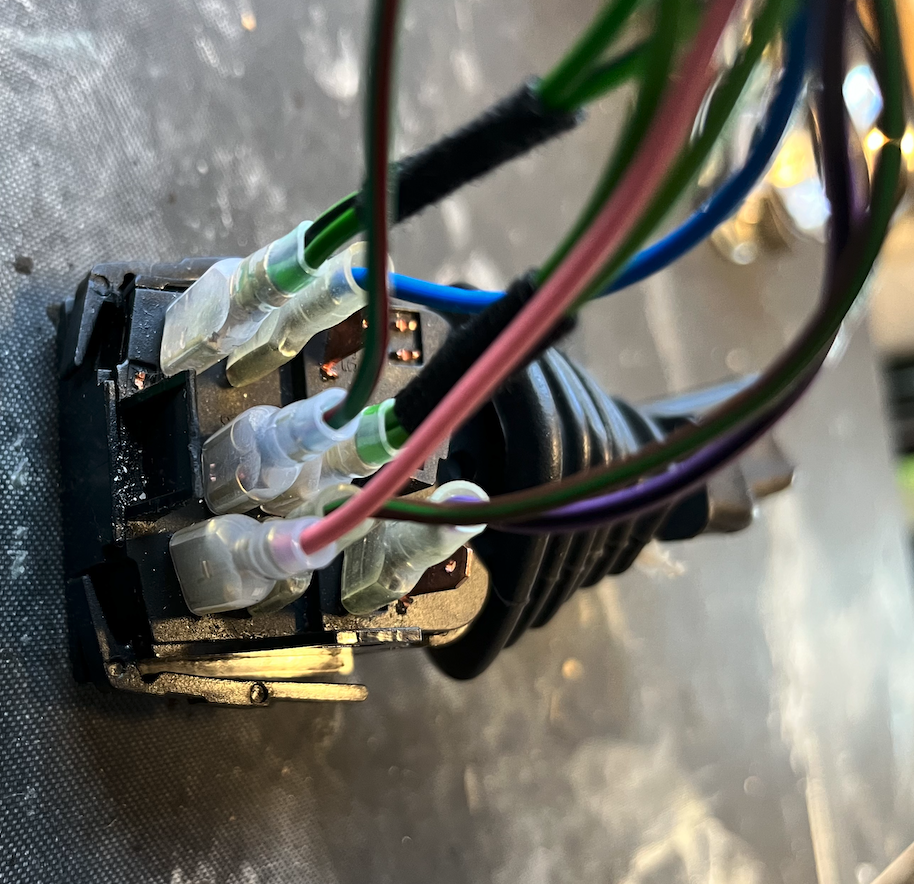

And how I did it…

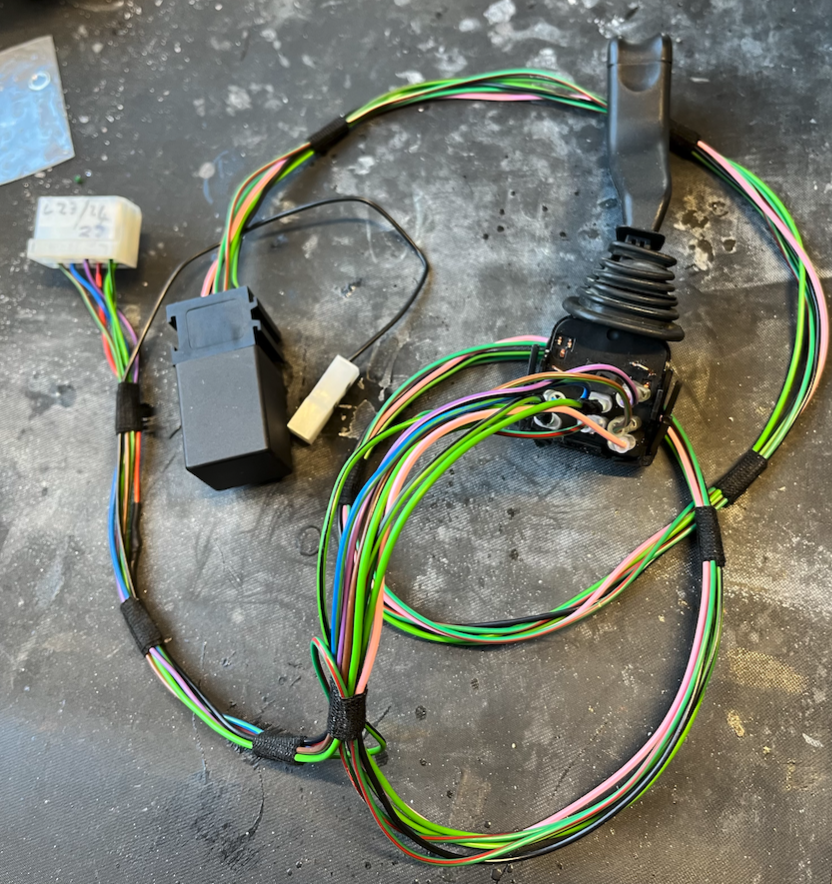

With the new [additional relay], gnd, and wire (J (pink))
